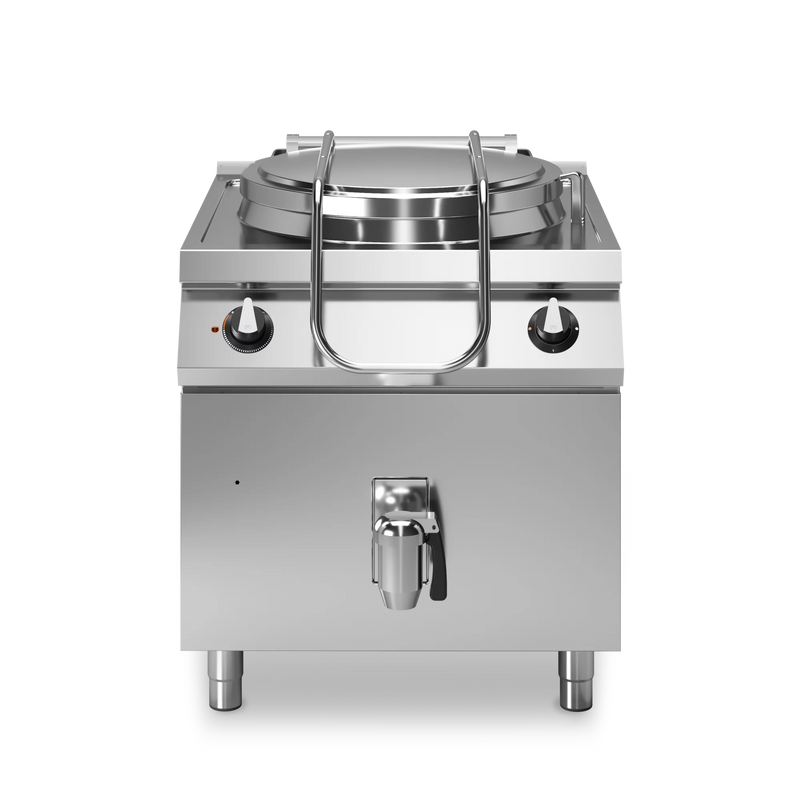

R90/80PED/150 Electric pot, direct heating, 150 litres


Description

• Water loading: With solenoid valve
• Knobs: Made of aluminum with IPX5 water protection
• Floor: Made of AISI 304 stainless steel, thickness 20/10 mm
• Internal corners:90° straight. Optional H2 radius
• Net weight (kg):150
• Net volume (m3):0.626
• Gross weight (kg):175
• Gross volume (m3):1,426
• Total electrical power (kW):12.1
• Voltage (V):380-415
• Phases:3N
• Electricity (A):18.5
• Frequency (Hz):50-60
• Cable section (mmq):5G2,5
• Number of tanks:1
• Liters per tub 1:150
• Bowl size 1 (mm):Ø596x575
• Heating type: Direct
• Cold water connection size (inches):3/4"
• Hot water connection size (inches):3/4"
• Hot water pressure (bar):Max pressure 5 bar
• Hot water temperature (°C):40
• Cold water connection size (inches):3/4"
• Hot water pressure (bar):Max pressure 5 bar
• Exhaust Size (inches):2"
• Dimensions (mm):800x900x870
• Packaging dimensions (mm):880x1272x1274
